YAXCV-R, NA2XCY

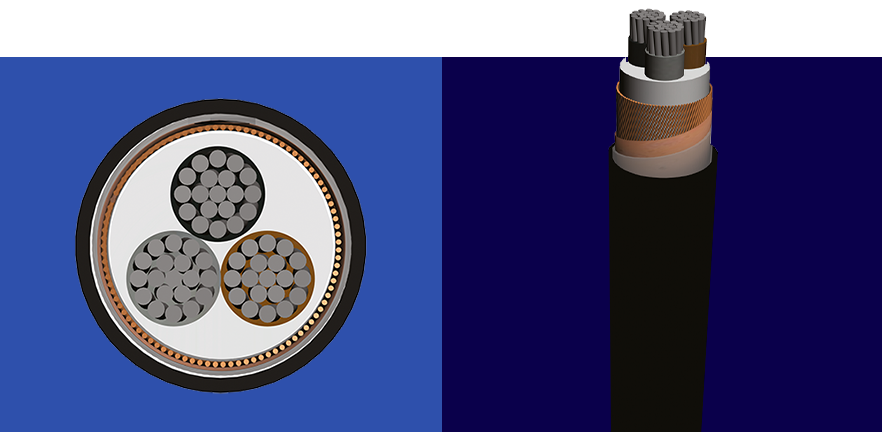

CONSTRUCTION
Stranded aluminium conductor, XLPE insulation, PVC inner sheath, Concentric copper wire, Copper tape as binder, Polyester tape, PVC outer jacket
TECHNICAL INFORMATION
CPR Certified
RoHS Compliance
Reach Compliance
Rigid Cable
Max. Operating Temprature: 70 °C
Max. Short CircuitTemprature: 160 °C
Installation Temprature: -5 °C
Underground
Damp and Wet Places
In Cable Ducts
Power Stations
Industrial Plants
Local Supply Systems
APPLICATION
These cables have a low dielectric loss, Indoor installations, in cable ducts, outdoor and underground for power stations, industrial plants and switching stations as well as local supply systems if increased protection is necessary. In case of mechanical damage the screen prevents any demage due to power leak to the surrounding area.
