YXY2Z1-R, N2XR(A)H

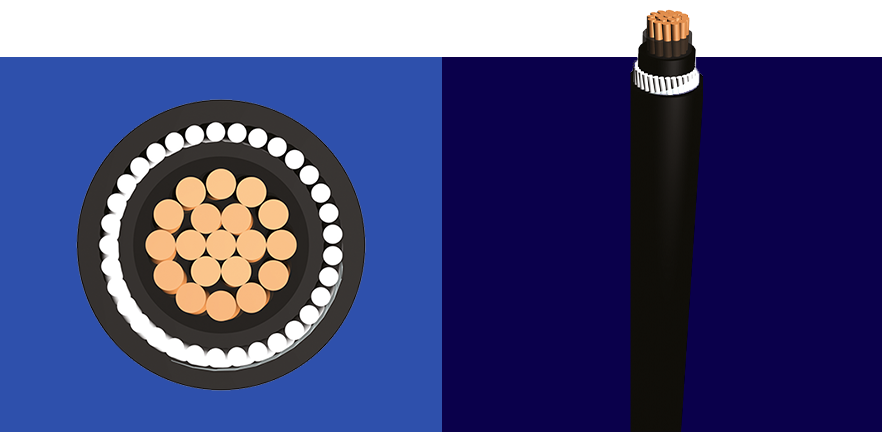

CONSTRUCTION
Stranded copper conductors, XLPE insulation, HFFR inner sheath, Round aluminium wire, Polyester tape, HFFR outer jacket
TECHNICAL INFORMATION
CPR Certified
RoHS Compliance
Reach Compliance
Low Smoke
Halogen Free
Flame Retardant
Fire Resistance
Rigid Cable
Max. Operating Temprature: 90 °C
Max. Short CircuitTemprature: 250 °C
Installation Temprature: -5 °C
Underground
Damp and Wet Places
In Cable Ducts
Where There is Risk of Mechanical Damage
Power Stations
Industrial Plants
Local Supply Systems
APPLICATION
These cables have a low dielectric loss, used in indoors and outdoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is risk of mechanical damage and fire.
